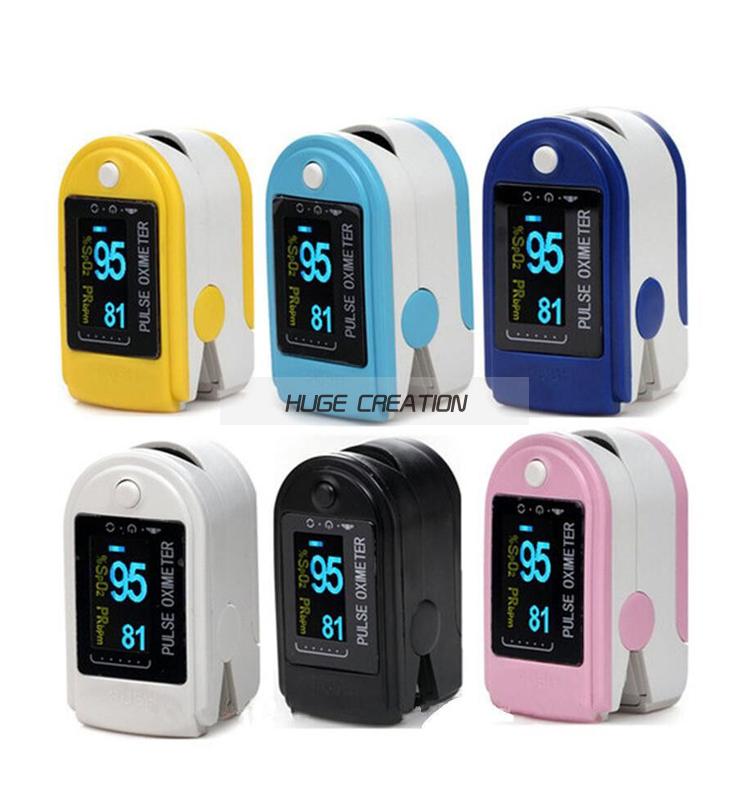

Pulse Oximeter Monitor SPO2 & pulse AH-50D

Color LED Display Design oxymetre pulsioxmetro Fingertip Pulse Oximeter Spo2

Major Features

* Integrated with Spo2 probe and processing display module
* Small in volume , light in weight and convenient in carrying
* Operation of the product is simple, low power consumption
* SpO₂ value display
* Pulse rate value display, bar graph display
* Pulse waveform display
* The display mode can be changed
* Screen brightness can be changed
* Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
* Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
* Display format can be saved after power off

Main performance

Display Mode: 0.96"Dual-color OLED display(blue and yellow)
Screen Resolution: 128*64
SpO₂ Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: +/-2bpm or +/-2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO₂ and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO₂ error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
Power Consumption: less than30mA
Voltage: DC 3.0V
Power Supply: 1.5V (AAA size) alkaline batteries * 2
Battery Working Hour : The minimum continually work time is 20 hours, theoretical number is 36 hours.
Safety Type: Interior Battery, BF Type

Accessories

Sell in standard:
*A hanging rope
*A user manual

Physical Identity
Dimension: 57(L) * 31(W) * 32(H) mm
Weight: About 50g (with the batteries)
